Power Electronics Test & Measurement Solution
ONS-APS-6000 SERIES Programmable AC Power Supply 1KVA/2KVA
ONS-APS-6000 SERIES Programmable AC Power Supply 1KVA/2KVA
ONS-APS-6000 SERIES Programmable AC Power Supply 1KVA/2KVA
The ONS-APS-6000 series:
It is a adjustable AC power source is a multi-function AC power source that integrates voltage, current, power and power factors. The internal high-speed processor is a cost-effective, high-stability AC power source.
Out put AC Voltage: 0-300Vrms Adjustable
Output Current:0-3.3/ 6.6A
Power: 1KVA/2KVA
Frequency: 50/60 Hz
●Output voltage AC 0-300v adjustable and power 1000VA
●A/P/PF upper and lower limit Settings, with voice alarm function
●The four Windows display V, A, P, Apk/PF/F switching
●Easy to use, safe and reliable
Programmable AC power supply
ONS-APS-6000 SERIES Programmable AC Power Supply 1KVA/2KVA
ONS-APS-6000 SERIES Programmable AC Power Supply 1KVA/2KVA
Programmable AC power supply FTPF Series
3KVA~900KVA
FTPF series programmable AC power supply, using ARM+ FPGA digital control, instantaneous waveform control and high frequency pulse width modulation (SPWM) technology, response speed up to 1mS, high output accuracy, low waveform distortion; With three-phase voltage independent adjustable, can edit harmonics, start phase adjustable, phase online variable, nonlinear load adaptability, with ON/OFF test function; Modular design concept, small volume and weight, convenient operation, cost-effective. Touch screen voltage, frequency, time setting; Provide embedded intelligent PC monitoring system, with RS232, RS485, TCP/IP network cable communication interface.
ONS-APS-4000 Series AC source: 350VA/700VA/1200VA
ONS-APS-6000 SERIES Programmable AC Power Supply 1KVA/2KVA
AC Power Source ONS-APS-7000 Series: 500VA/1KVA/2KVA/3KVA/5KVA

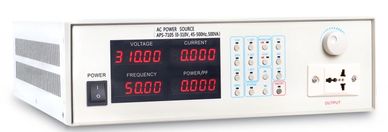

AC Power Source ONS-APS-4000 Series
ONS-APS4000 series is a ac power source from
Voltage: 0-300Vac, Current: 3/6/10A
Power: 350VA ,700VA & 1200VA, Output frequency: 45Hz-250Hz
●The advanced direct digital frequency synthesizer (DDS) waveform is used to achieve high frequency stability, good continuity and accurate measurement;
●Measuring function: voltage, current, frequency,power, power factor;
●Strong overload capacity, 300% overload 2s;
●Keyboard shortcuts: 110V, 220V, 50Hz, 60Hz shortcuts self-assembly;
●Intelligent analyzing function: automatically judge the cause of failure and situation, as well as display the code when alarming is reported;
●Key LOCK function prevents inadvertent touch;
●With key lock M1, M2,M3,M4 and M5 five sets of memory, can store the commonly used voltage V and frequency F, easy to recall them by one key;
●Equipped with 100% load and unload function, the voltage stabilizing reaction time is within 20ms;
●Output voltage 0-150.00V、0-300.00V;
●Push-down infinite coding knob switch, adjusting cursor position by pressing the knob;
●Input frequency 45.00-250.00Hz;
●Four window five digit display, display voltage V, frequency F, current I, power P, power factor PF simultaneously, and more accurate;
●Input and output are isolated;
●Has soft start function to avoid the damage to power supply caused by the instantaneous impulse current of the load (such as motor) when power on.
AC Power Source ONS-APS-7000 Series: 500VA/1KVA/2KVA/3KVA/5KVA
ONS-APS-50000 SERIES AC POWER SOURCE 5KVA to 500KVA(1Ph/3Ph output)
AC Power Source ONS-APS-7000 Series: 500VA/1KVA/2KVA/3KVA/5KVA
AC Power Source ONS-APS-7000 Series.
The advanced direct digital frequency synthesizer (DDS) waveform is used to achieve high frequency stability,good continuity and accurate measurement;
●Overload capacity, 300% overload 2S;
●Keyboard shortcuts: 110V, 220V, 50Hz, 60Hz shortcuts self-assembly;
●Intelligent analysis function: automatically determine the Cause of failure ,status and display the code when the alarm is reported;
●Key lock function prevents inadvertent touch;
●With 100% loading and unloading, the stabilizing reaction time is within 20ms;
●With key lock M1, M2 and M3 three sets of memory, can store the commonly used voltage V and frequency F, easy to recall them by one key;
●RS485, RS232, Ethernet communication interface or simulation control mode (optional);
●Five display windows: voltage V, frequency F, current I, power P/power factor PF, display more accurately;
●Adopt input and output isolation mode;
●Has soft start function to avoid the damage to power supply caused by the instantaneous impulse current of the load (such as motor) when power on.

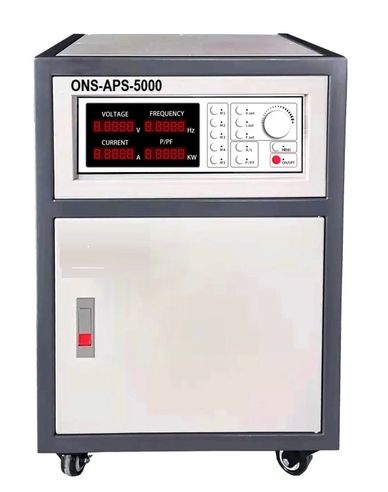

ONS-APS-50000 SERIES AC POWER SOURCE 5KVA to 500KVA(1Ph/3Ph output)
ONS-APS-50000 SERIES AC POWER SOURCE 5KVA to 500KVA(1Ph/3Ph output)
ONS-APS-50000 SERIES AC POWER SOURCE 5KVA to 500KVA(1Ph/3Ph output)
ONS-APS50000 series is a ac power source from 5KVA to 500KVA, Output frequency: 40Hz-500Hz continuously adjustable (special frequency can be customized); Output phase voltage: withstand 1V-150VAC, high-grade 151V-300VAC, automatic gear 1V-300V.
* Output frequency: 40Hz-500Hz continuously adjustable (special frequency can be customized);
* Output phase voltage: withstand 1V-150VAC, high-grade 151V-300VAC, automatic gear 1V-300V, line voltage 1V-520V (special voltage can be customized);
* Voltage, frequency, current, power, power factor meter adopts 4-digit LED display, simple, easy to read and high resolution;
* Voltage (V), frequency (Hz), current (a), power (W) and power factor (P) can be measured and displayed simultaneously without switching;
* No radiation interference, small harmonic component, and special treatment, no interference, pure and stable sine wave output;
* Under the output state, the voltage, frequency, high and low gear switching can be adjusted without shutdown, which can meet the online test of different voltages;
* Large capacity, small size, light weight, high efficiency, silent device, high reliability;
* Provide standard voltage, frequency, analog test of all kinds of electric products in the world;
* Strong overload capacity, instantaneous current can withstand 3 times of rated current;
* With over-current, over-temperature, over-voltage, short-circuit, instantaneous power-off protection and warning devices;
